Customized Stainless Steel Tube Ice Making Industrial Equipment for Food Grade Ice Production and Hygienic Standards

LNSTANT FREEZING

Lock Nutrition and Freshness

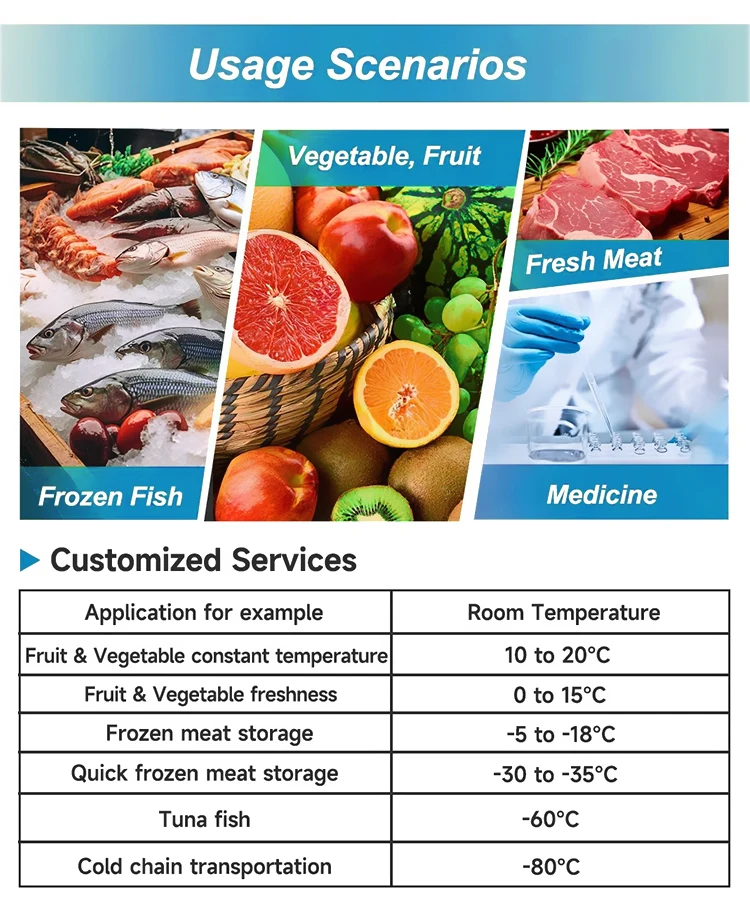

Various application scenarios of cold room


• FRUIT STORAGE：0°C~5°C
•
• MEDICAL VACCINE STORAGE：-23°C~-25°C
•
• MEAT STORAGE：-10°C~-20°C
•
• FOOD PROCESSING ROOM：-25°C~-10°C
•
• SEA FOOD STORAGE：-25°C~-18°C
•

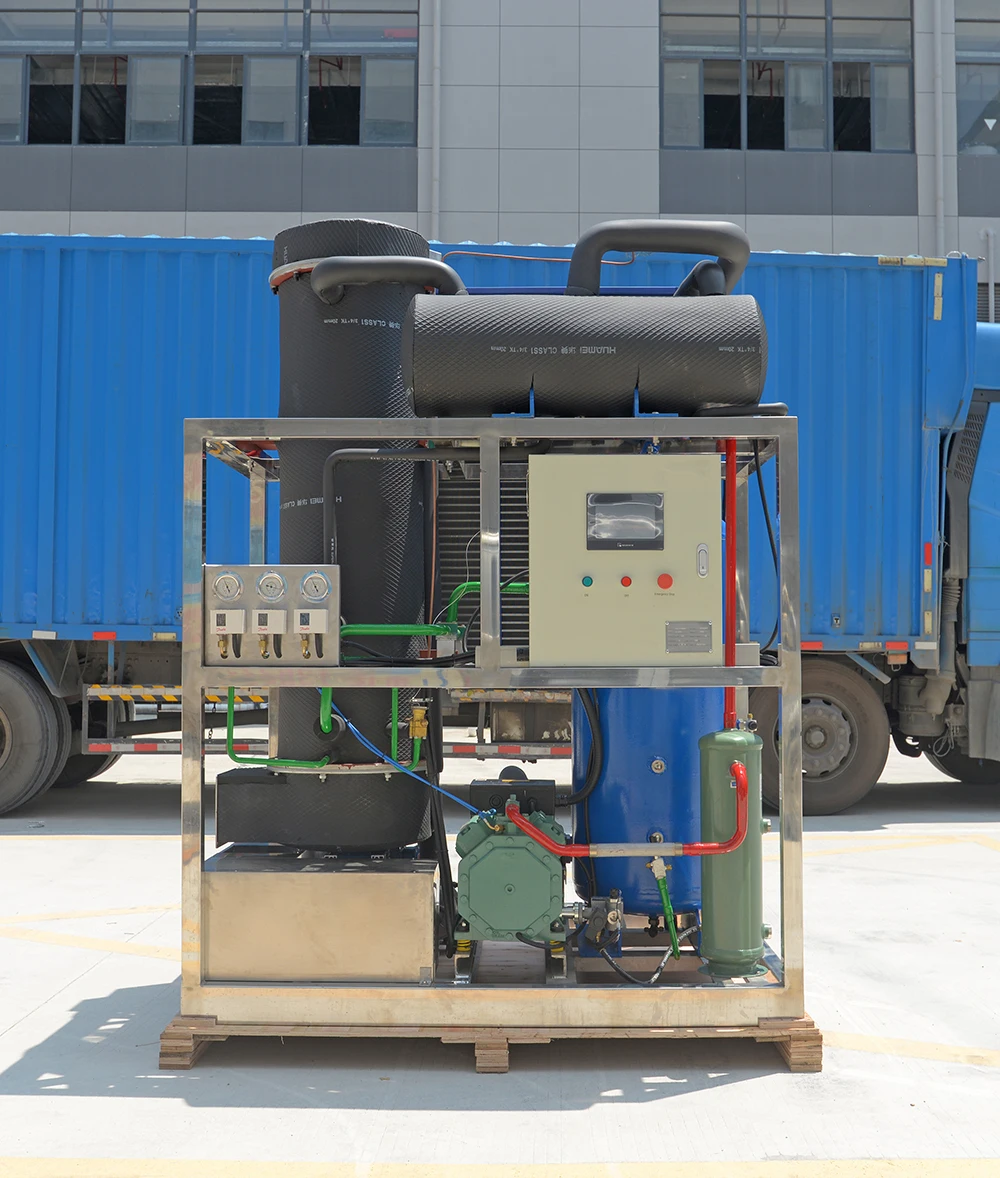

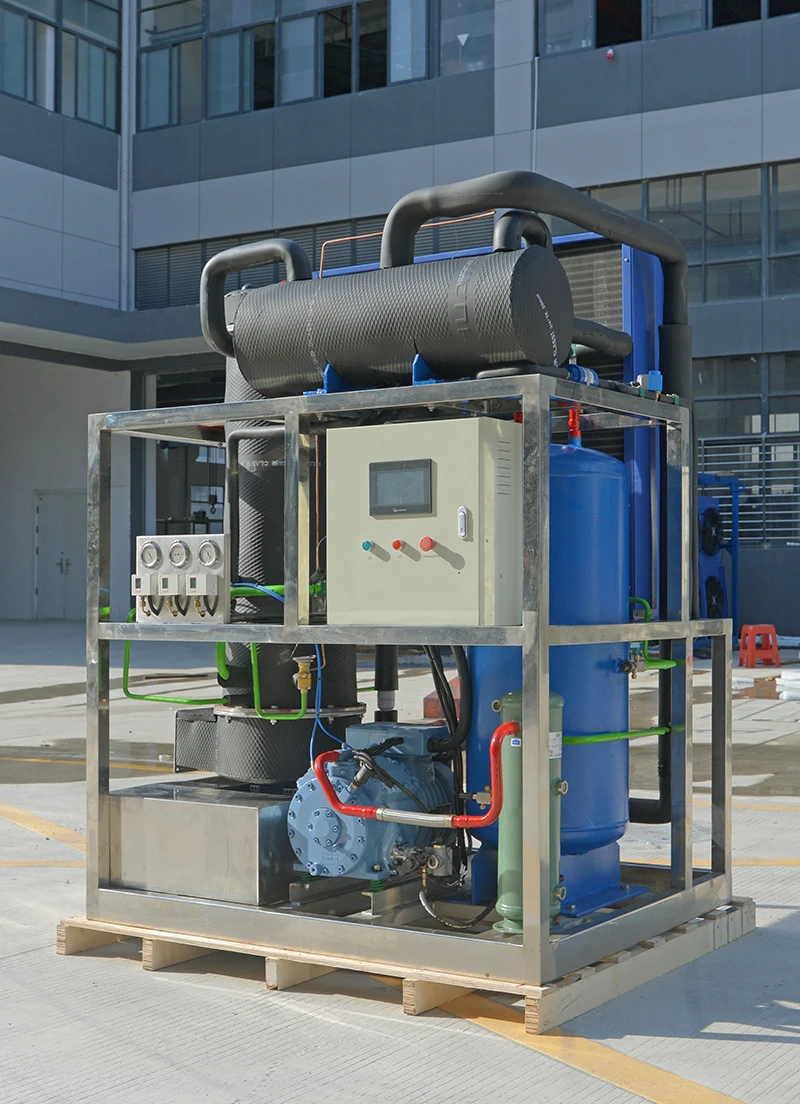

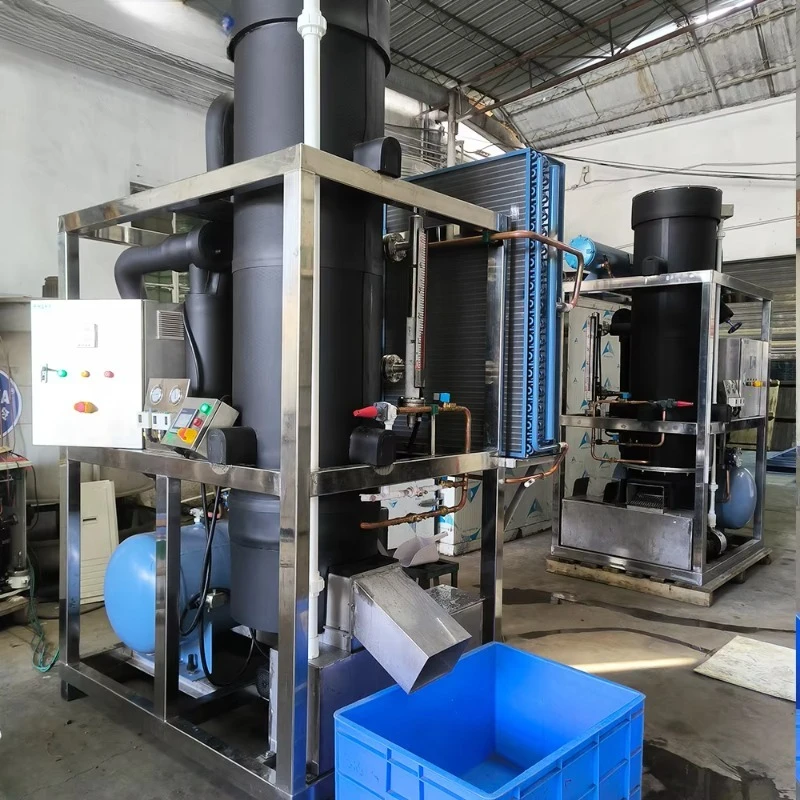

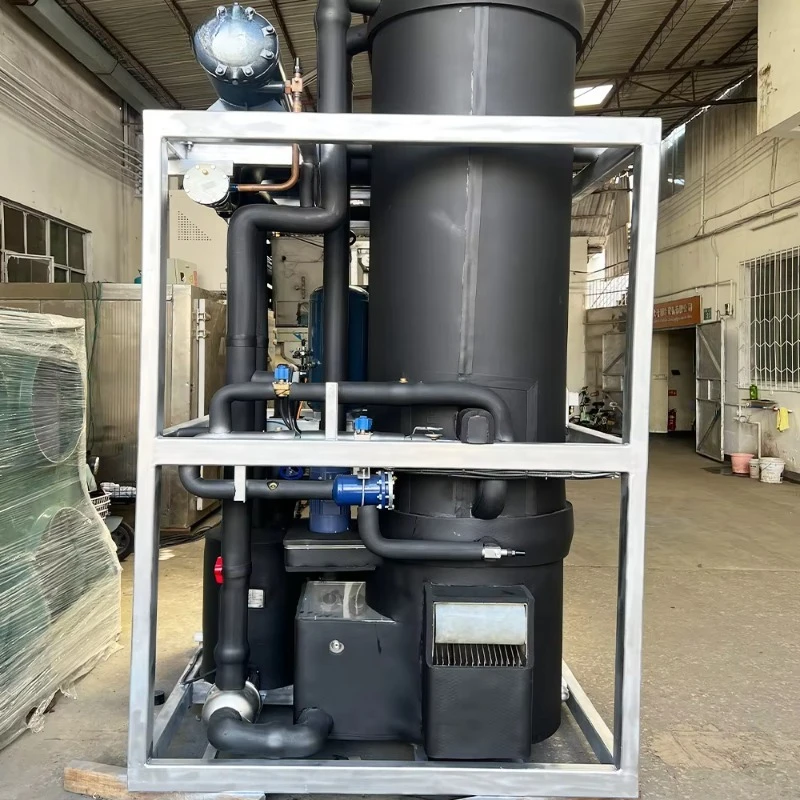

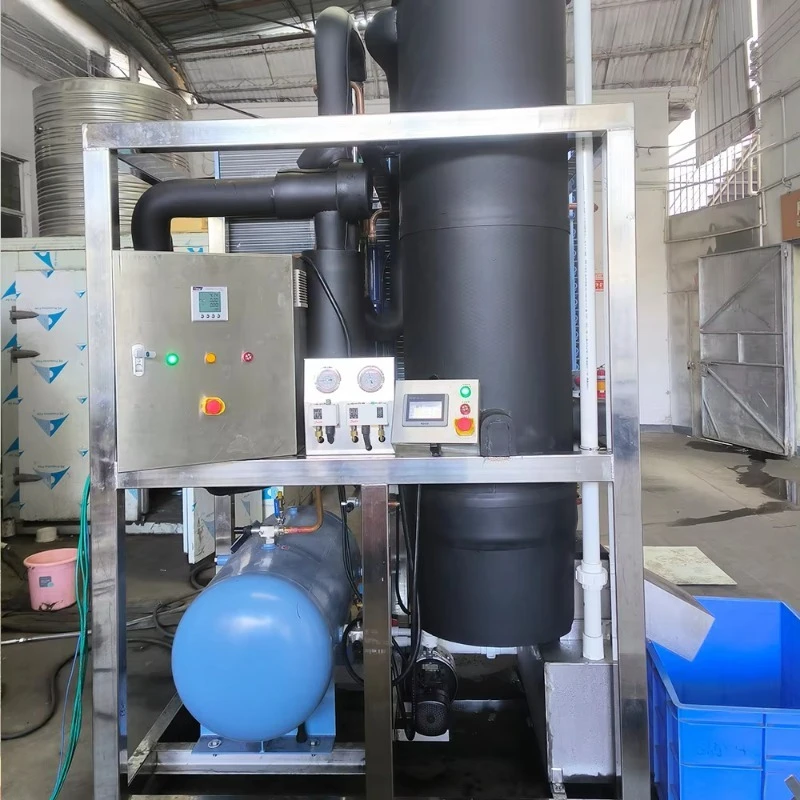

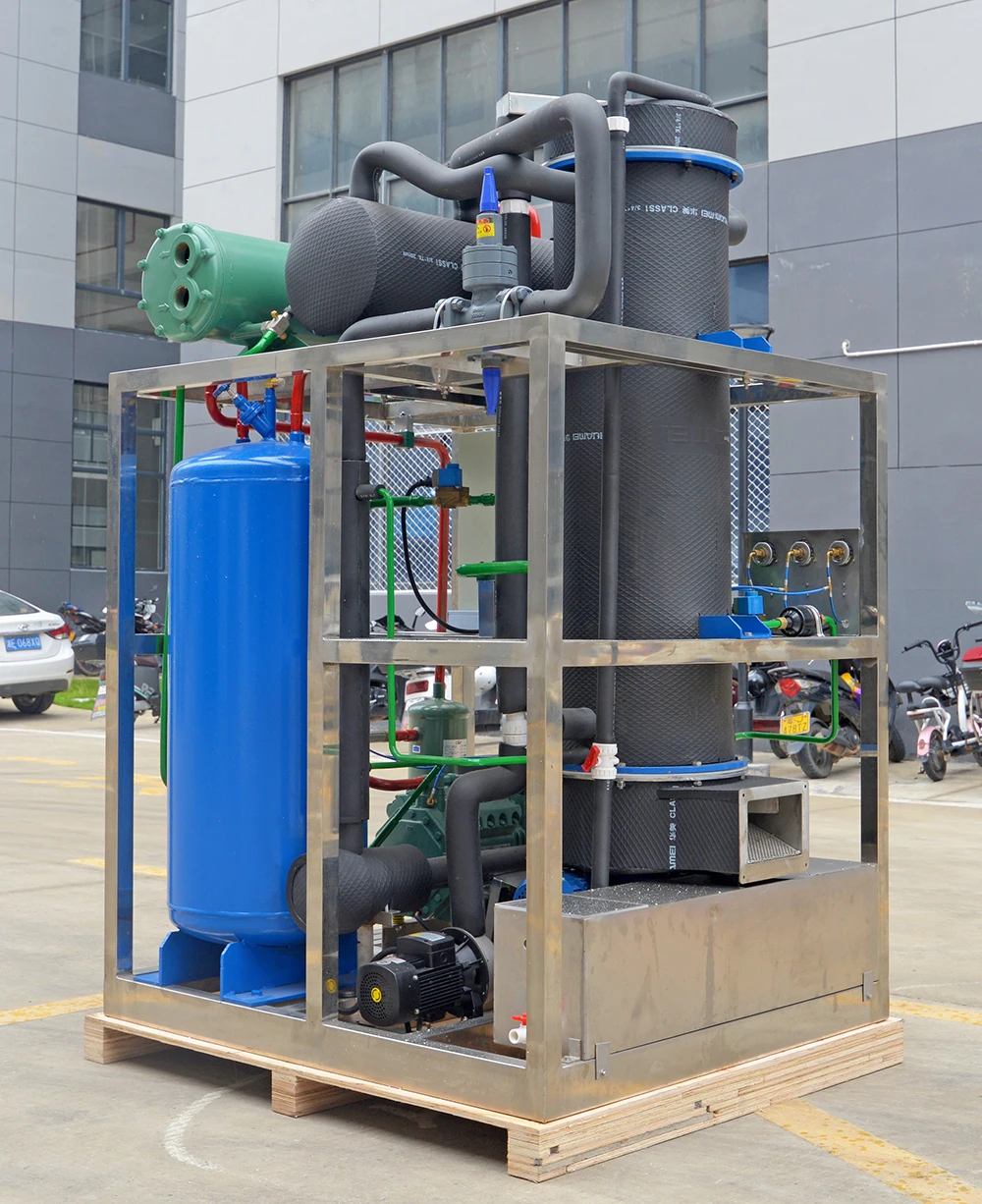

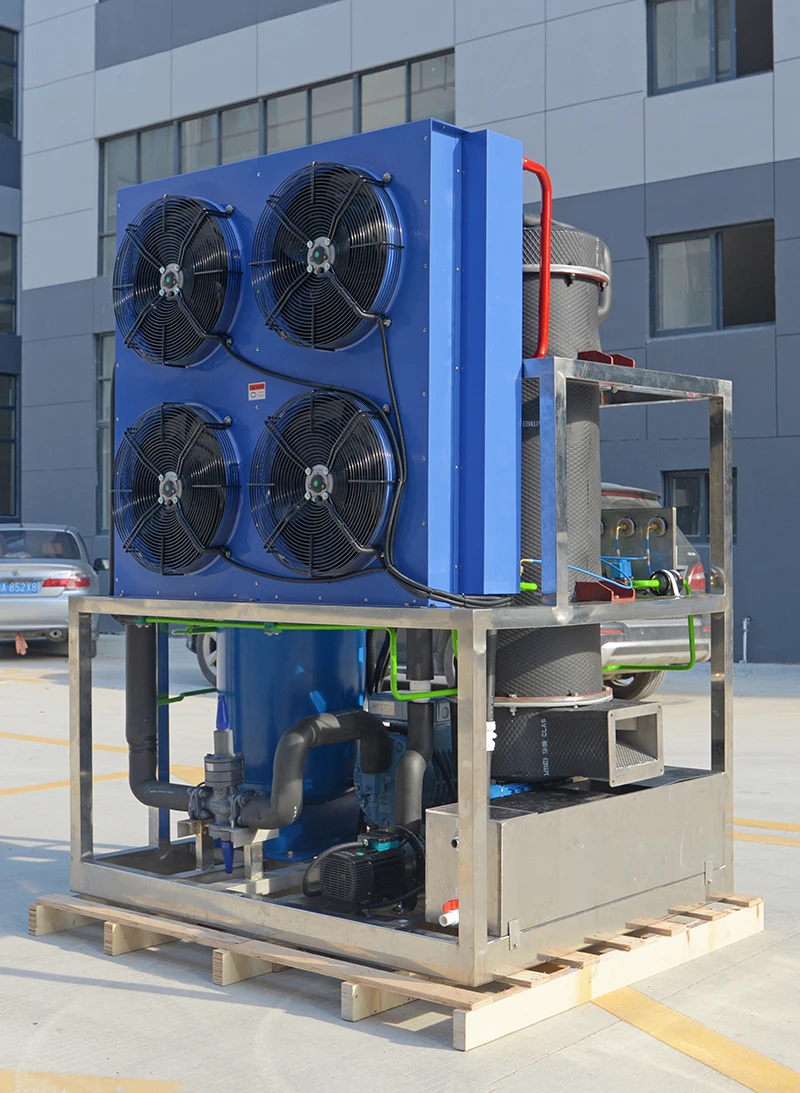

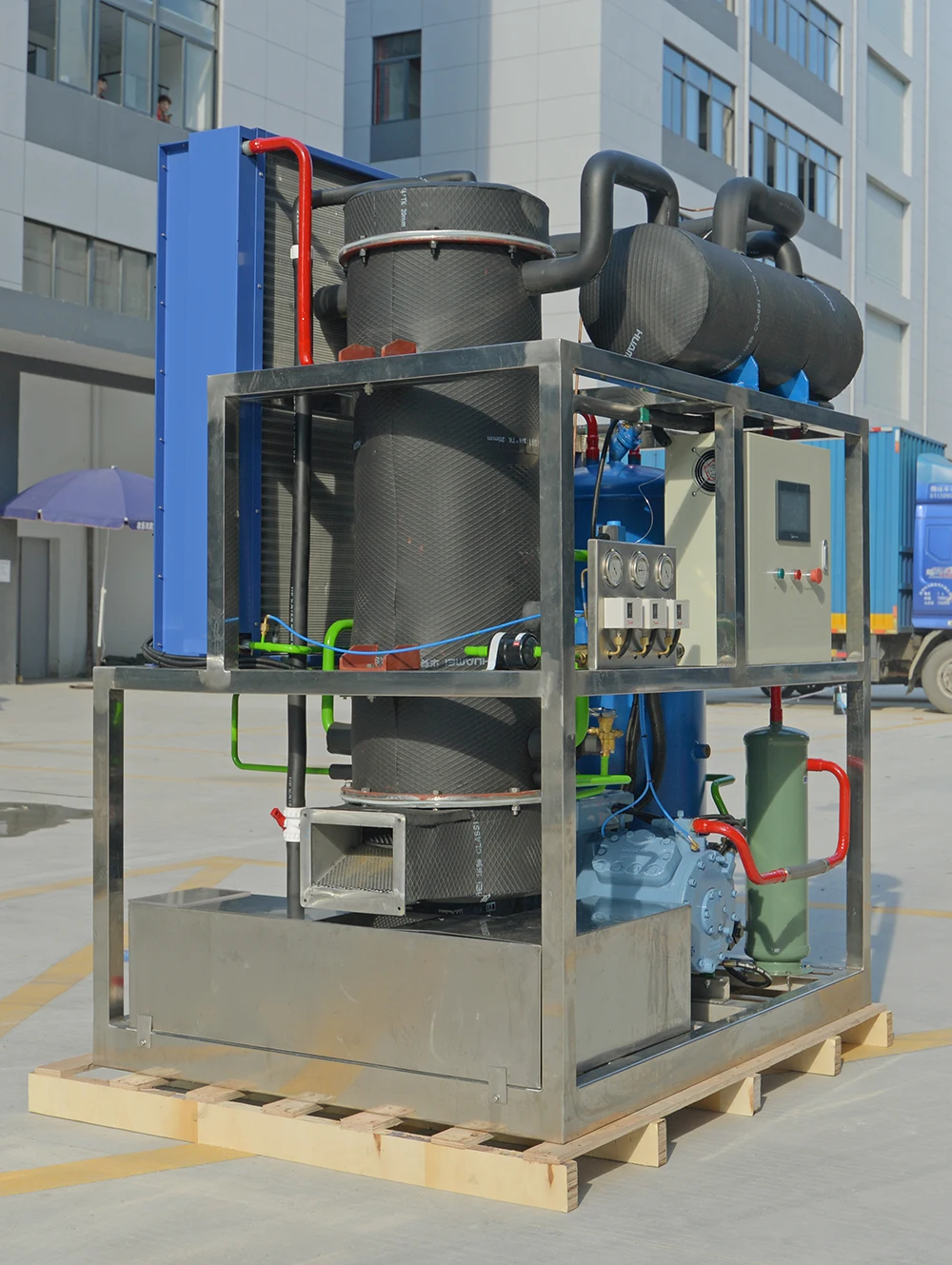

Tube Ice Machine

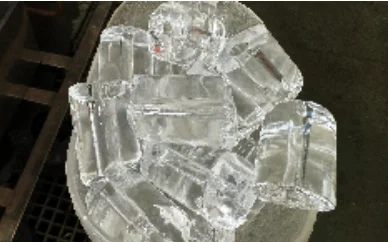

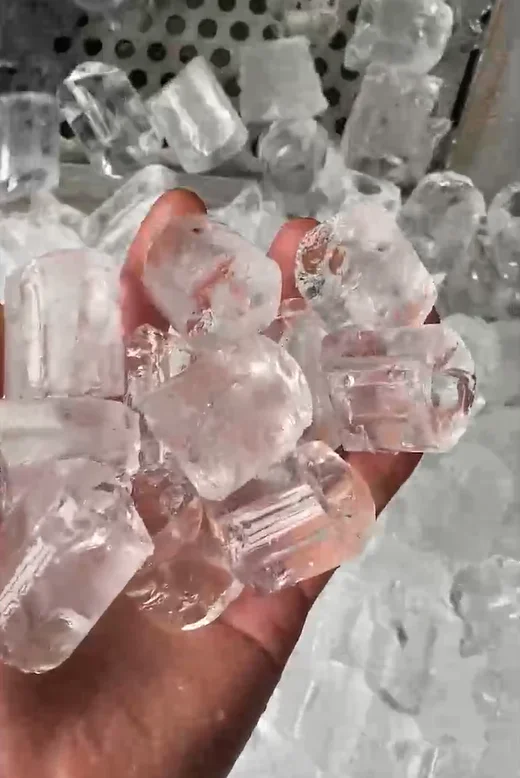

With high density, ice purity and not easy to melt, especiallytube ice is very beautiful. Tube ice is popular in catering&beverage and food fresh keeping. The ice is very common inour daily life and commercial using.

◆Integrated modular design, easy to maintain and transport.

◆Advanced water circulation systems, Ensure the ice quality:purify and transparent. ◆Fully-automatic production system, andlabor saving, efficient. ◆Two ways heat-exchange system, High efficiency,simple&safe operating. Self-design, Self-production, Optimize every processingworks, make the machine a perfect performance.

Technical Parameters

Model

Daily Output

Refigerating Capacity

Total Power

Compressor Power(kw)

Refrigerant

Cooling way

Operating Weight

Dimensions of Unit（mm）

Dimensions of Evaporator（mm）

SDAT-1T

1T

12.3

6.8

4.6

R404a/R22

Air

1000

1250*1150*2140

SDAT-2T

2T

19.2

9.6

6.9

R404a/R22

Air

1130

1600*1240*2200

SDWT-3T

3T

21.8

10.4

7.8

R404a/R22

Air/ water

1350

1600*1350*2425

SDWT-5T

5T

35.7

16.5

12.6

R404a/R22

Air/ water

1750

1600*1600*2720

SDWT-10T

10T

61.6

30.6

22.5

R404a/R22

Water

2750

2200*1900*3590

SDWT-15T

15T

93.8

43.2

35.1

R404a/R22

Water

3750

2200*2000*3500

SDWT-20T

20T

122.2

59.5

48.8

R404a/R22

Water

5200

2500*1700*2200

2000*1800*4450

SDWT-30T

30T

188.4

85.7

71.3

R404a/R22

Water

8450

2650*2000*2230

2100*2100*5060

Working Conditions
Ambient Temp:	25℃	Inlet Water:	18℃
Power Supply:	3P/380V/50Hz	Water Inlet Pressure:	0.1MPa~0.5MPa
